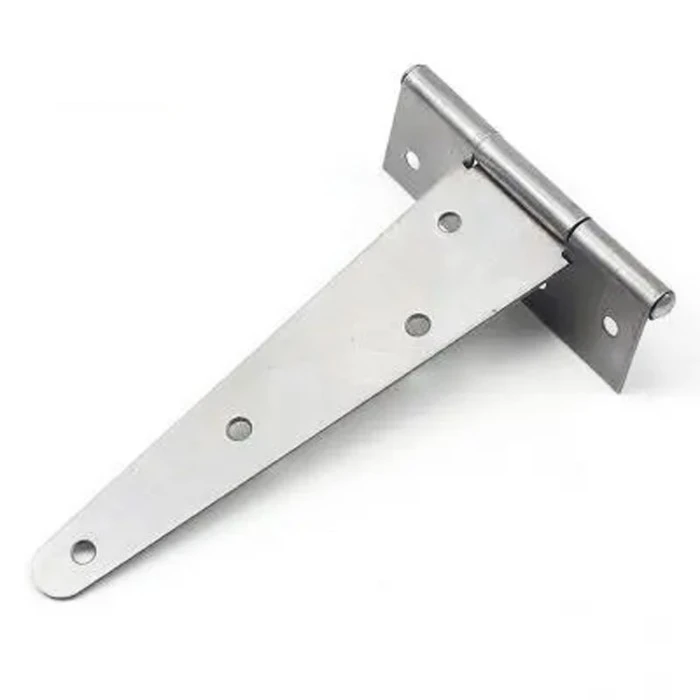

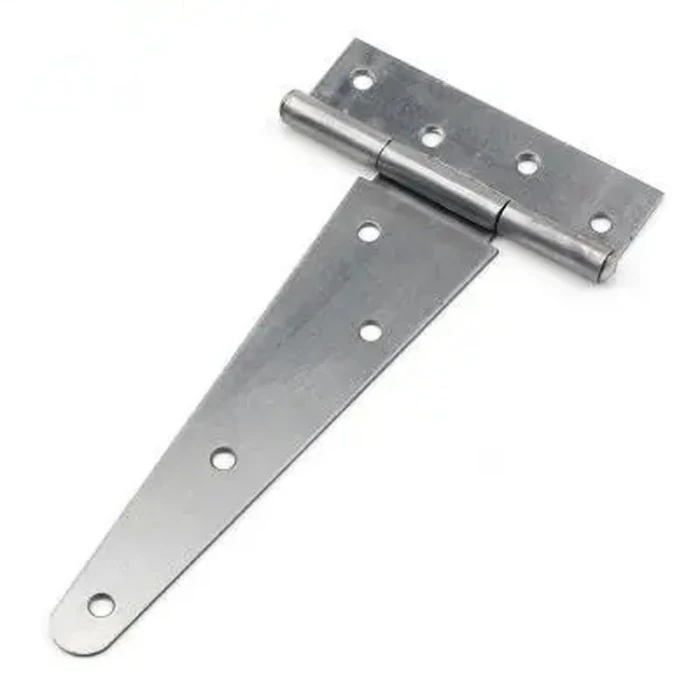

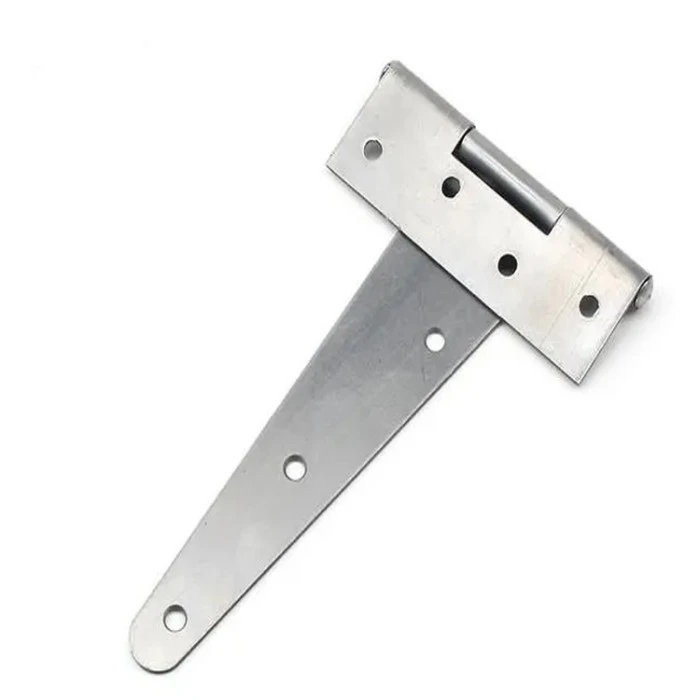

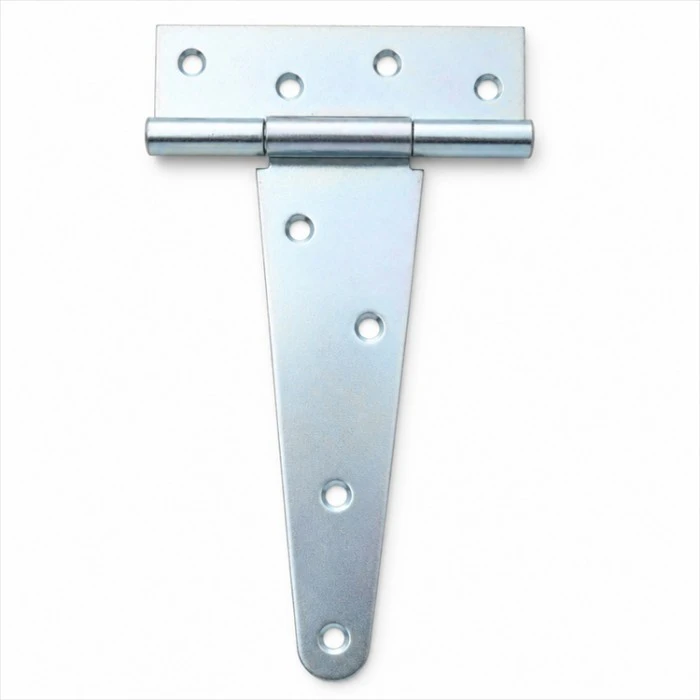

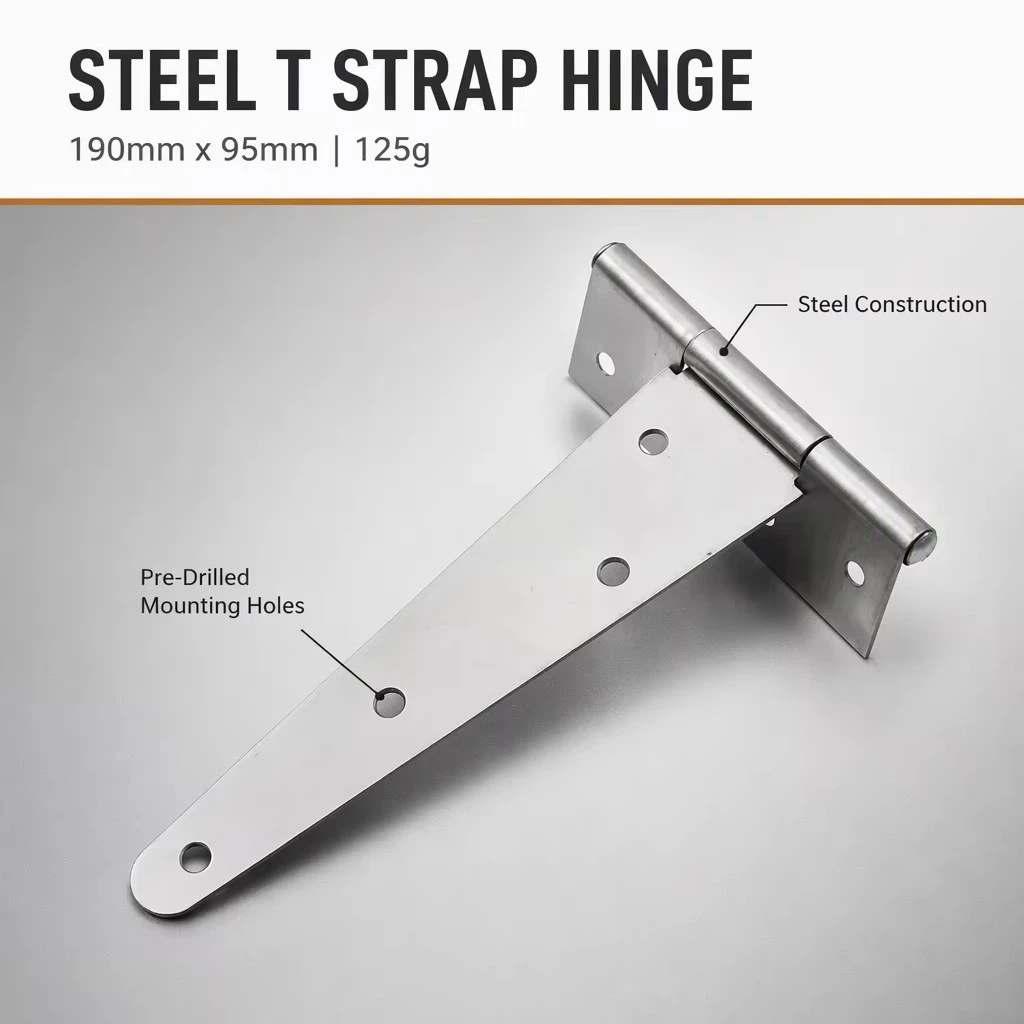

JunJie is a China supplier and manufacturer of the 6" Heavy-Duty Folding Steel Door T-Strap Hinge, made in our own factory for door hardware importers. The strap is cut from steel strip, tapered from the barrel to the tip and formed into a welded barrel that holds the pin: the wide end sits at the hinge line where the load is highest, and the long strap spreads that load over the door face instead of concentrating it in one short leaf. A compact plate carries the same pin on the frame, so the door swings on a joint that is supported on both sides of the gap. Zinc plating covers the leaves, the punched holes and the barrel, which is what makes the hinge usable on an outdoor door. Bulk orders, custom strap lengths, matched screw kits and OEM branding are produced to your market.
| Item | Specification |
| Product Name | 6" Heavy-Duty Folding Steel Door T-Strap Hinge |
| Brand | JunJie(OEM / private label available) |
| Frame Material | steel |
| Surface Finish | Zinc plated |
| Size | 6’’ |
| Weight | 125g |
| Packing | carton |
| MOQ / Lead Time / Port | To be confirmed per order (factory: Jiaxing, China) |
| Where | Why the tee hinge fits |
| Garden shed / flat-pack store doors | Thin frame, flat face — no rebate to cut, no split stile |
| Folding steel door panels | Two straps per leaf carry the panel and keep the fold line square |
| Farm and barn gates | Long strap spreads gate weight over the frame face, not into a soft post |
| Outdoor storage boxes, log stores | Plating + enclosed pin survive weather a decorative hinge will not |
| Garage side doors, workshop panels | Hole pattern can follow the frame thickness the door actually has |
| Animal enclosures and coops | No rebate for dirt to collect in; pin cannot be worked loose |
| Restoration work / hinge replacement | Hole layout reproduced to the old pattern, so no redrilling |
Designed for both outdoor and indoor use, providing robust security.

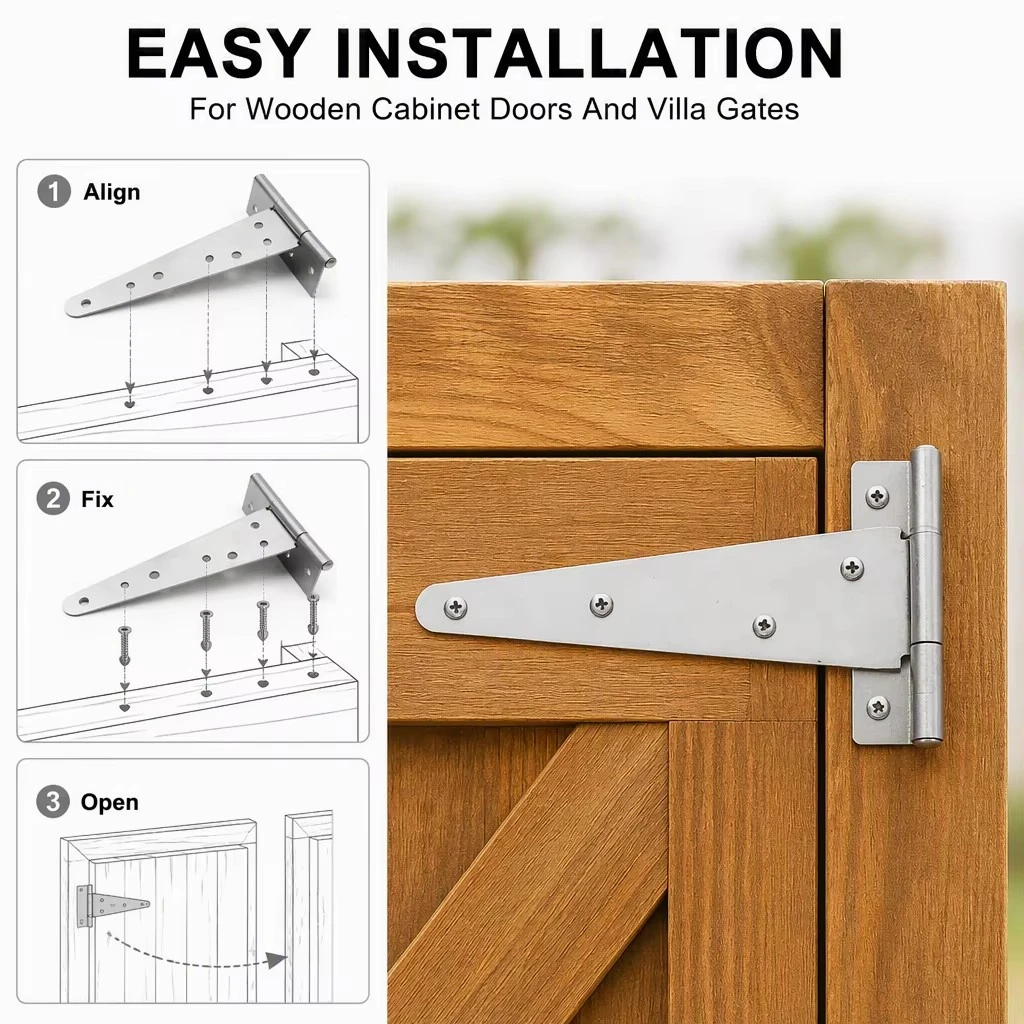

Easy installation and secure attachment directly to your door.
Offers smooth operation and durability for years.
Built to withstand harsh weather conditions and high traffic areas.
Packing for the 6" Heavy-Duty Folding Steel Door T-Strap Hinge is arranged to your order: standard export cartons with the frames protected against movement inside the box, neutral outer cartons for buyers who label in their own warehouse, and printed cartons or palletized loading on request. Carton size, quantity per carton, gross weight and container loading figures are confirmed per order — send your destination port and quantity and we will return the exact packing plan with photographs of the packed pallets before loading.
Shipment Terms: Goods are packed and inspected at our factory in Jiaxing, close to major export ports. Lead time and freight terms (FOB/CIF) are confirmed against your order quantity and destination, with pre-shipment photos provided before loading.
That depends on the environment. Standard zinc plating suits a door that gets wet and dries; for coastal air, constant damp or wash-down, specify stainless steel or hot-dip galvanized. Is the steel stainless?
Yes - that is the usual route for restoration and replacement work. Send the drawing or a photograph with the hole centres measured and the layout is reproduced to order.
Screw supply is To be confirmed. Screws can be quoted in the same carton as a matched kit, sized to the frame the hinge will be fixed into, which is worth doing because screw length is where most sagging hinge complaints start.
Yes. Private-label marking, handle branding, hang tags and printed cartons are all produced to order, with samples before a production run.
MOQ and lead time depend on quantity and customization level. Send your order details and we will confirm exact terms — for standard fleet orders we keep production scheduling tight.
